Introducing the iStore solar battery, an ideal partner for any iStore inverter. The iStore Smart Battery is customizable to meet your energy requirements, regardless of their scale.

Thanks to its innovative modular design, expanding your home's energy storage doesn't require purchasing an entirely new solar battery. Instead, you can simply add another battery block to your existing iStore solar battery, which helps you save both money and space. This design allows the iStore to scale from a minimum of 5 kWh to a maximum of 30 kWh.

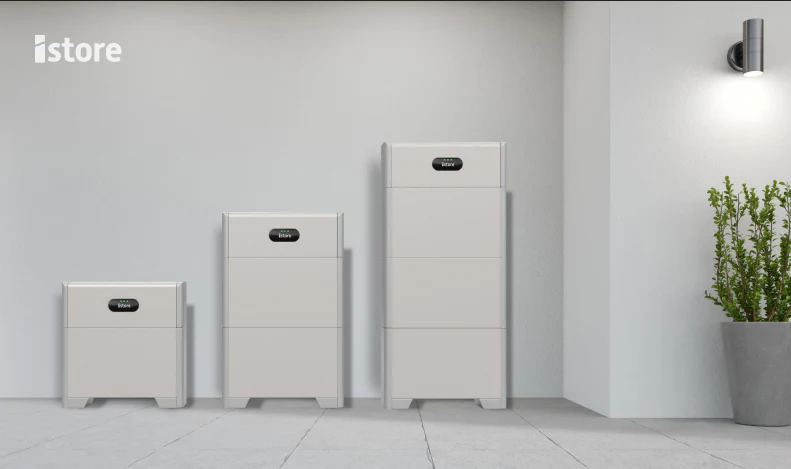

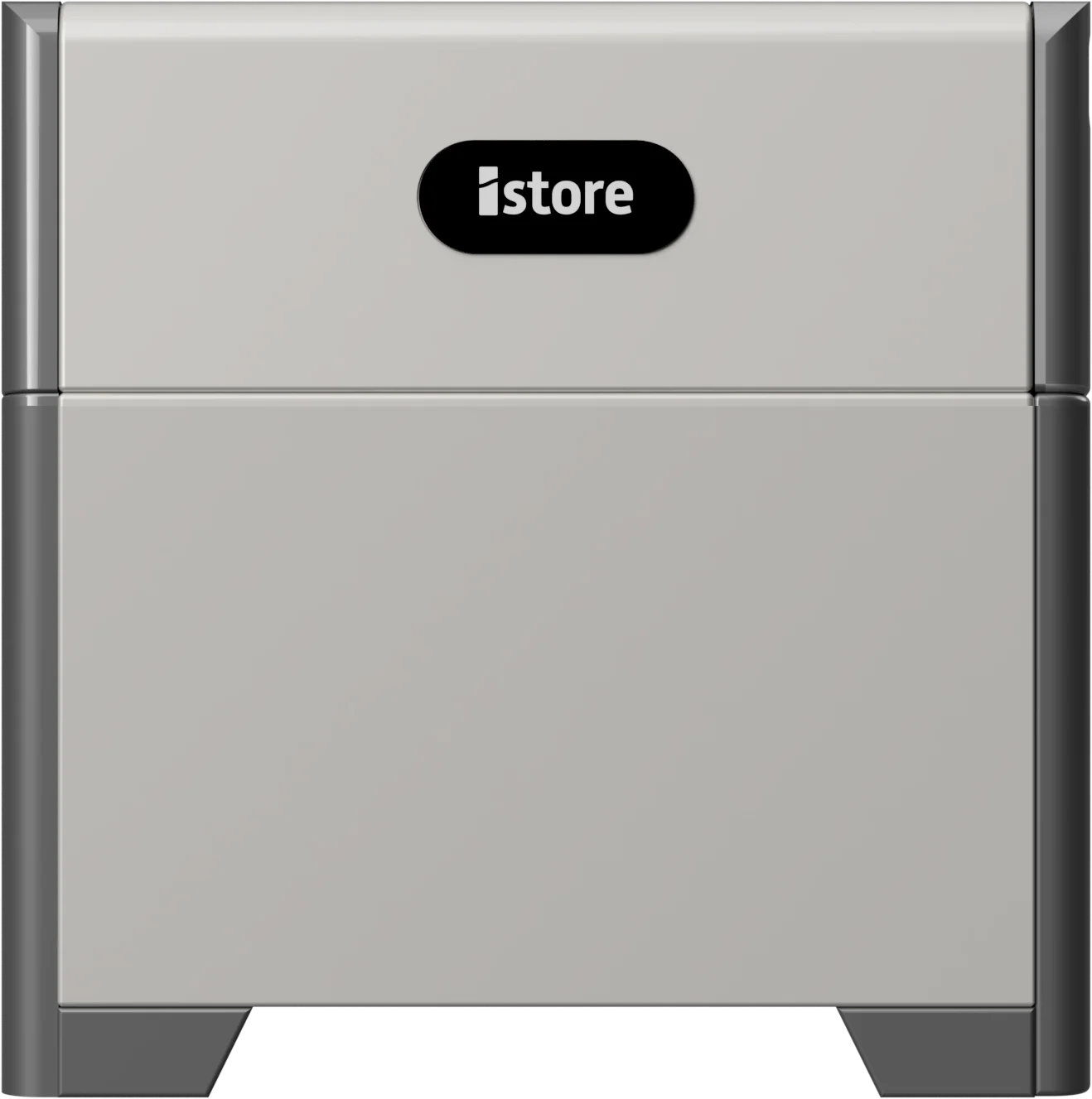

In terms of its structure, the iStore smart battery is made up of stackable modules, each with a weight of 50 kg and a capacity of 5 kWh. By linking three modules, you can form a 15 kWh battery.

Additionally, you can connect two sets of these 15 kWh batteries in parallel to reach a total capacity of 30 kWh.

Modular design offers flexible investment options
Fully compatible with both single-phase and three-phase iStore Hybrid inverters
Provides more usable energy with a 100% depth of discharge

Performance

Power Module

Number of modules	1
Rated charge and discharge power	5 kW
Nominal voltage (single-phase system)	450 V
Operating voltage (single-phase system)	350–560 V
Nominal voltage (three-phase system)	600 V
Operating voltage (three-phase system)	600–980 V

Communication

Display	SOC status indicator, LED indicator
Comms	RS485/CAN (only for parallel operation)

Battery Module

Modules	Usable Energy	Max. Output Power	Peak Output Power
1	5 kW	2.5 kW	3.5 kW (10s)
2	10 kW	5 kW	7 kW (10s)
3	15 kW	5 kW	7 kW (10s)
