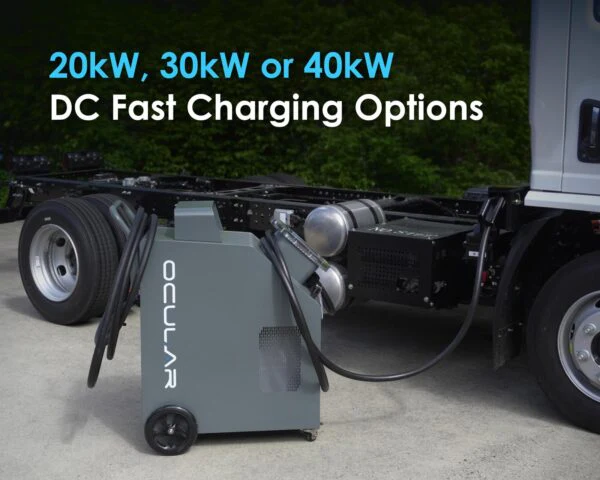

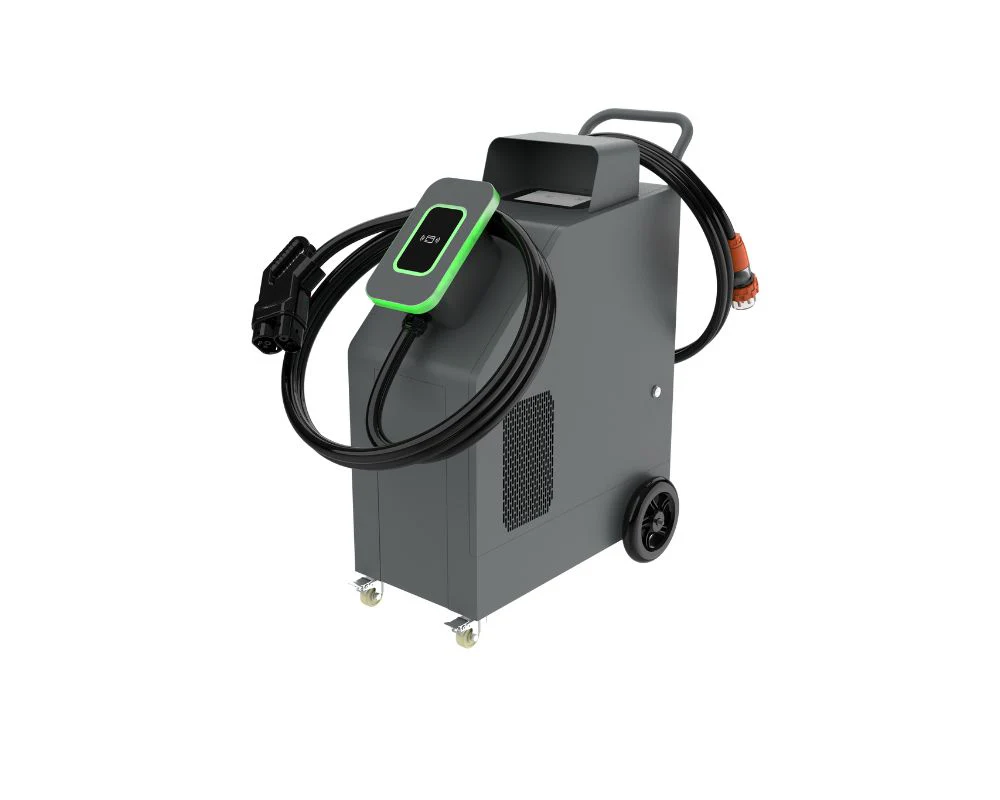

20kW Ocular Roam 2.0 Portable DC Charging Station

The Ocular Portable DC Charger is a transportable DC fast charger suitable for charging all types of electric vehicles, cars, trucks & buses. You can easily charge your EVs at any location with a high powered 32Amp 3-phase outlet available. Our world leading portable has powered fleets across Australia as the best in class portable DC charger.

• CCS EV charging station with  CCS Combo 2
• Portable- Plugs into 3-phase wall outlet 32Amp 3-phase (20kW)
• Compatible with every EV
• LCD monitor
• 5m CCS2 Cable
• 2 Year Warranty
• Meets Australian and European standards
• Robust construction and silver-plated contacts assure a reliable connection.
• LED User-friendly interface
• Soft-switching technology, efficiency up to 95%
• 20kW model

Technical Specifications:

Rated Power Output	:	20kW
Number of Charging Ports	:	1

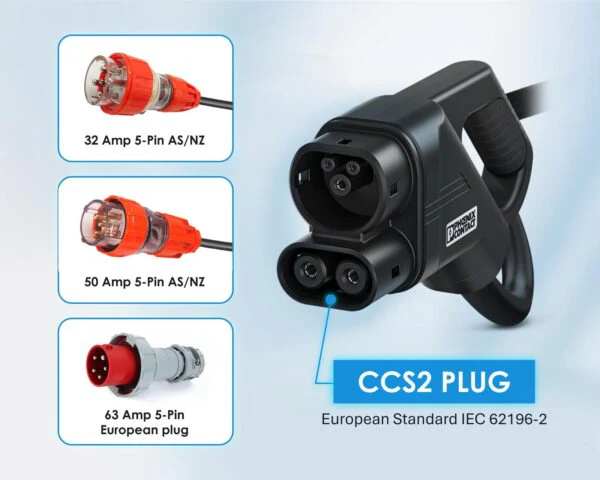

Charging Plug Type	:	CCS2 as standard, other options available on request
Power Plug Type	:	32 Amp 5-Pin AS/NZ
Rated Input Voltage	:	+15%/-15%
Frequency (Hz)	:	50/60Hz
AC Input Current @400V (Amps/phase)	:	31
Power Factor	:	>=0.98
Efficiency	:	>=0.95
Output Voltage	:	150V-1000V DC (vehicle dependent)

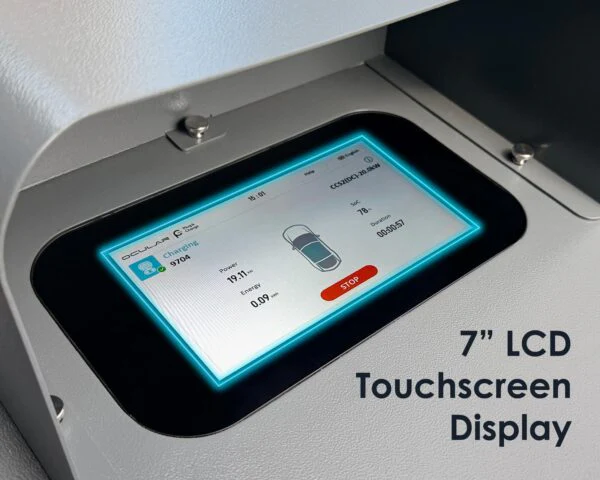

Display	:	7" LCD touch screen
Charging Cable Length	:	5m Straight Cable
Power Cable Length	:	5m Straight Cable
User Authentication	:	OCPP mobile app (subscription required), touch screen, RFID
OCPP	:	OCPP 2.0.1 & OCPP 1.6J full profiles support

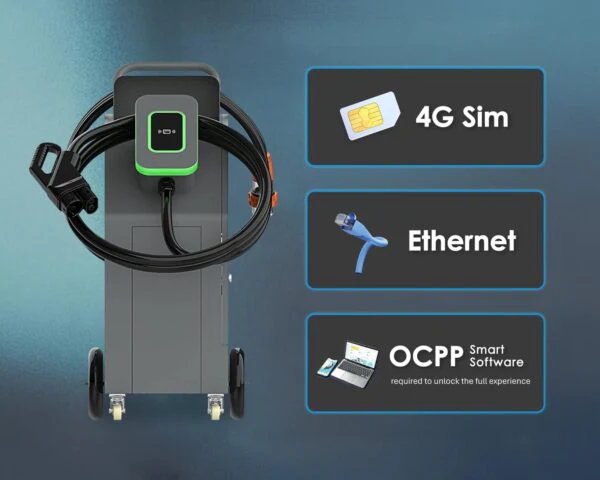

Communication Interfaces	:	Ethernet, 4G

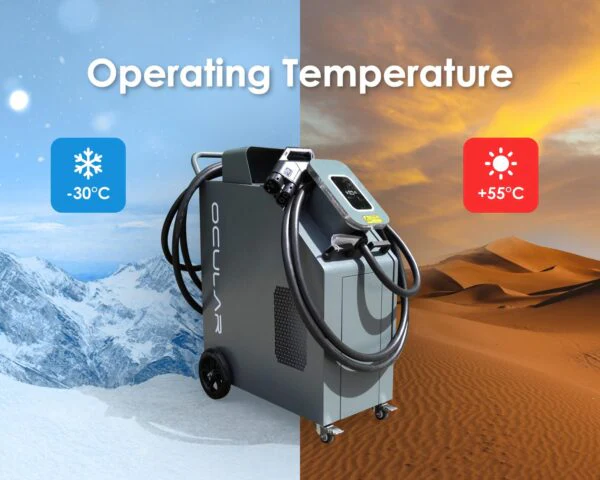

Ambient Air Temperature for Operation	:	-30°C ~ +55°C
Ambient Air Temperature for Storage	:	-30°C ~ +80°C
Working Humidity	:	95% relative humidity, non-condensing
IP Rating	:	IP55
Impact Protection Rating	:	IK10
Cooling	:	Forced Air

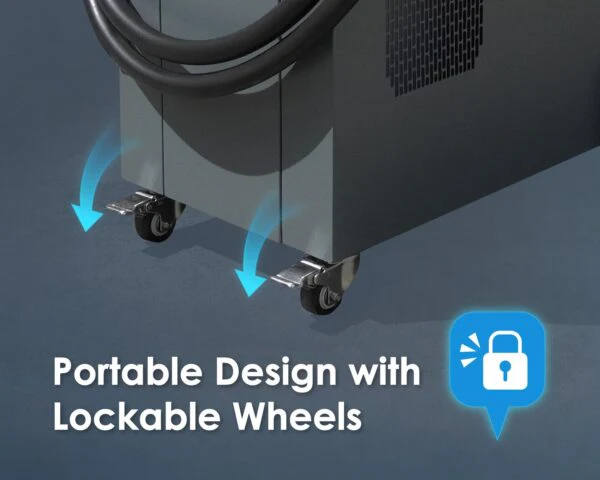

Mounting Type	:	Portable
Dimensions (H*W*D) mm	:	984 x 451.6 x 842.4
Electrical Protection	:	Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature
Certification	:	CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2, RCM
Warranty	:	2 Years (Extended warranties available)
