Ocular Atlas Pro DC Charger | 180kW | Dual Charger CCS2

The Ocular Atlas Pro DC Charger is designed to deliver fast, reliable charging with its compact 488mm profile and robust 21.5” touchscreen display. This advanced system not only provides a premium user experience but also features ad space to generate additional revenue. Perfect for carparks and commercial spaces, the Atlas Pro allows seamless app billing or tap ‘n’ go payments, making it easy to turn charging stations into reliable income streams.

The Atlas Pro comes standard with dual CCS2 ports and offers optional CHAdeMO configurations, allowing it to charge two vehicles simultaneously. With OCPP compatibility (1.6J and upgradable to 2.0.1), smart load control, and secure user identification via mobile app or RFID, this unit is built for efficiency. The system is compatible with all major EV brands in Australia, ensuring versatile charging options for every setting.

• The Ocular Atlas Pro is the ultimate fast DC charging solution, engineered to deliver convenience and efficiency in any carpark with its slim 470mm profile.
• The Ocular system is equipped to also power vehicles with high voltage battery systems. Compatible with all major EV Brands in Australia.
• Featuring a large 21.5” display for a premium user experience and ad space to generate additional revenue, the Atlas Pro is perfect for commercial settings.
• Rated Input Voltage: 3-phase 400V AC ± 15%
• Can charge 2x EV’s at once
• Compatible with all-electric vehicles with DC Capabilities

Technical Specifications:

Rated Power Output	:	180kW
Number of Charging Ports	:	2
Plug Type	:	CCS2 as standard, other options available on request
Rated Input Voltage	:	3-Phase 400V ± 15%
AC Input Current @400V (Amps/phase)	:	277
Max AC Input Current (Amps/phase)	:	325
Frequency (Hz)	:	50/60Hz
Power Factor	:	>=0.99
Efficiency	:	>=94%
Input Cable Type	:	3P + N + PE
Output Voltage	:	150V-1000V DC (vehicle dependent)
Output Current (Per Connector)	:	300 Amp per plug
Display	:	21.5" CTP Touch Screen
Charging Cable Length	:	5m Cable as standard. Other cable lengths available on request
Cable Management	:	Retractable pulley

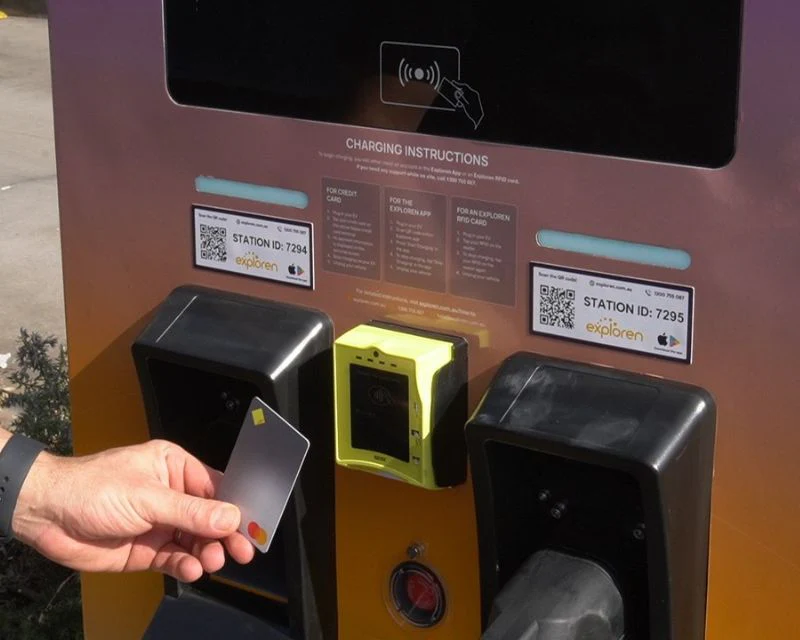

User Authentication	:	Mobile app, RFID, Autocharge
RFID Reader	:	ISO14443 Type A cards compatible
Credit Card Payment Module	:	Optional Nayax credit card module upgrade
Emergency Stop	:	Push button
OCPP	:	OCPP1.6J, OCPP2.0.1
Communication Interfaces	:	Ethernet, 4G (Standard size sim), Modbus (TCP/IP)
Load Control	:	Compatible with Ocular Load Controller or OCPP smart profiles
Ambient Air Temperature for Operation	:	-30°C℃ to +55°C℃
Ambient Air Temperature for Storage	:	-40°C℃ to +75°C℃
Working Humidity	:	95% relative humidity, non-condensing
Altitude	:	Up to 6000 feet (2000 m)
Protection Rating	:	IP55
Cooling	:	Forced Air
Dimensions (H x W x D mm)	:	2051 x 1092 x 1021
Net Weight	:	450 kg
Electrical Protection	:	Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature
Certification	:	CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2, RCM
Supported Language	:	Language Selectable by user on screen - English, French, German, Spanish, Italian,Portuguese, Russian, CČeština, Finnish, Chinese, Japanese, Romanian, Thai,Arabic, Turkish
Warranty	:	2 Years (Extended warranties available)
