Ocular LTE Plus V3 | w/6m Type 2 Cable | 7kW Single Phase

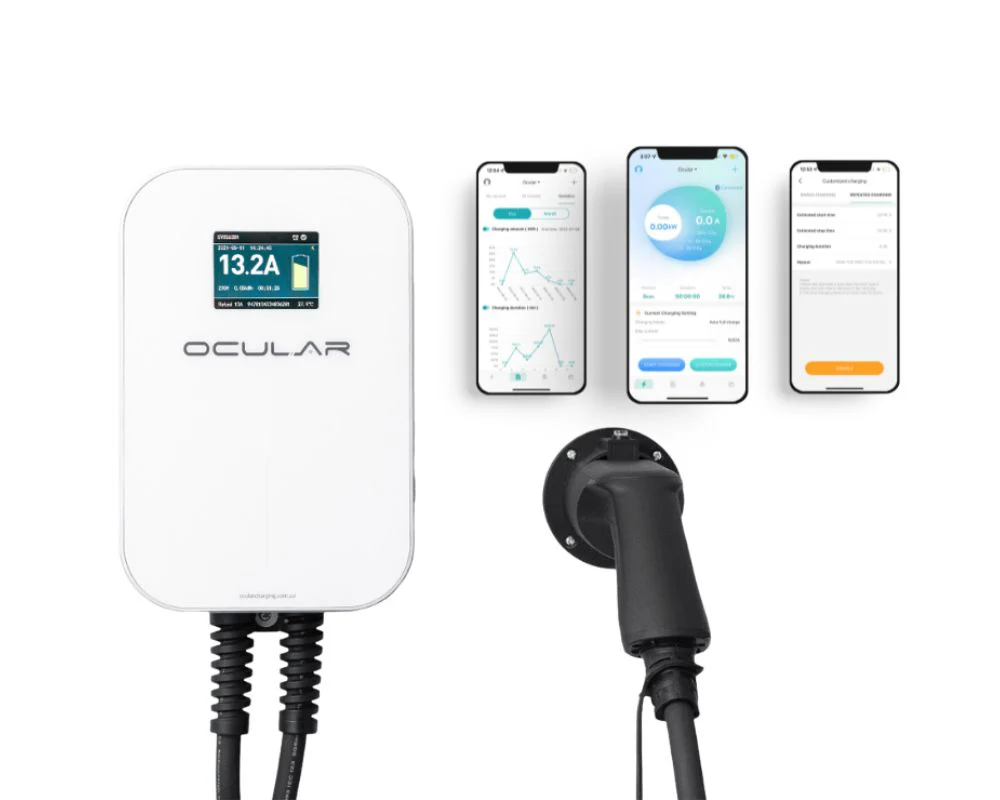

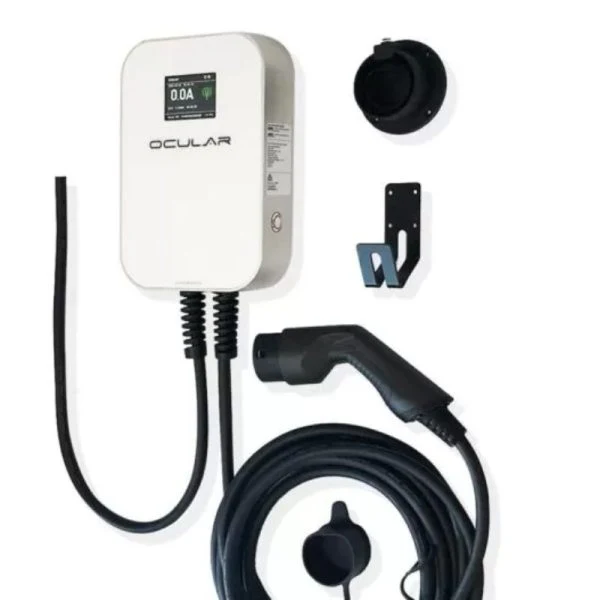

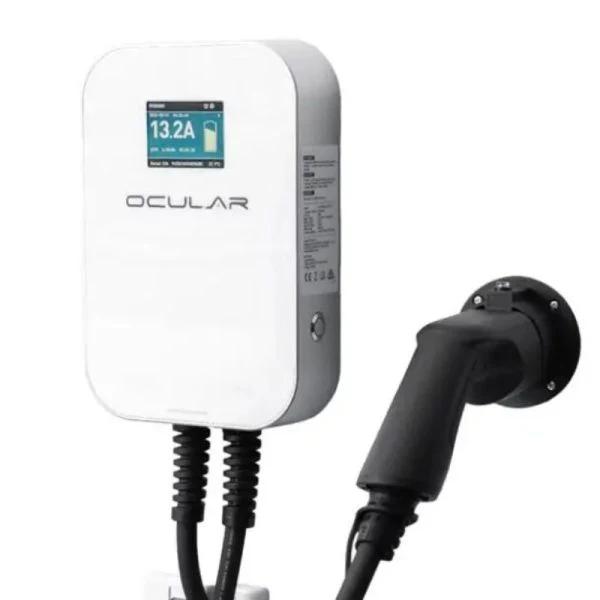

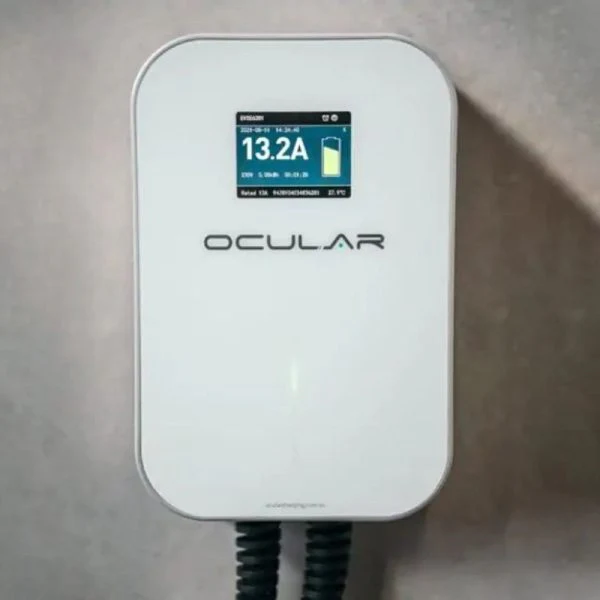

The Ocular LTE Plus EV Wallbox comes with a 6m Type 2 EV cable and Bluetooth Smartphone app. With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current & internal temperature.

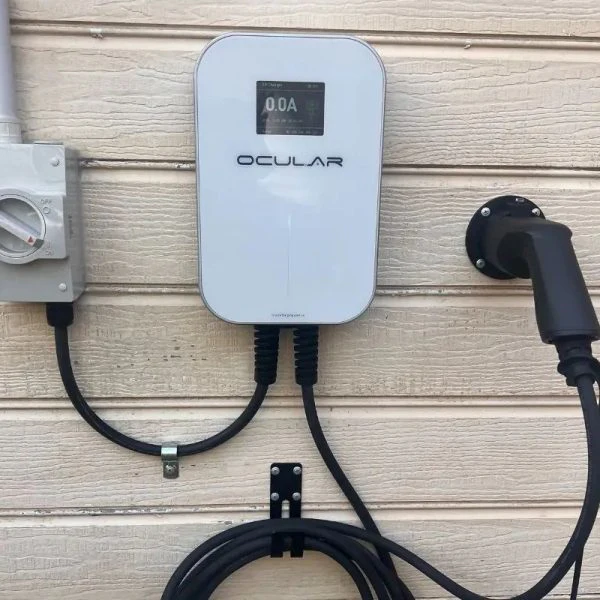

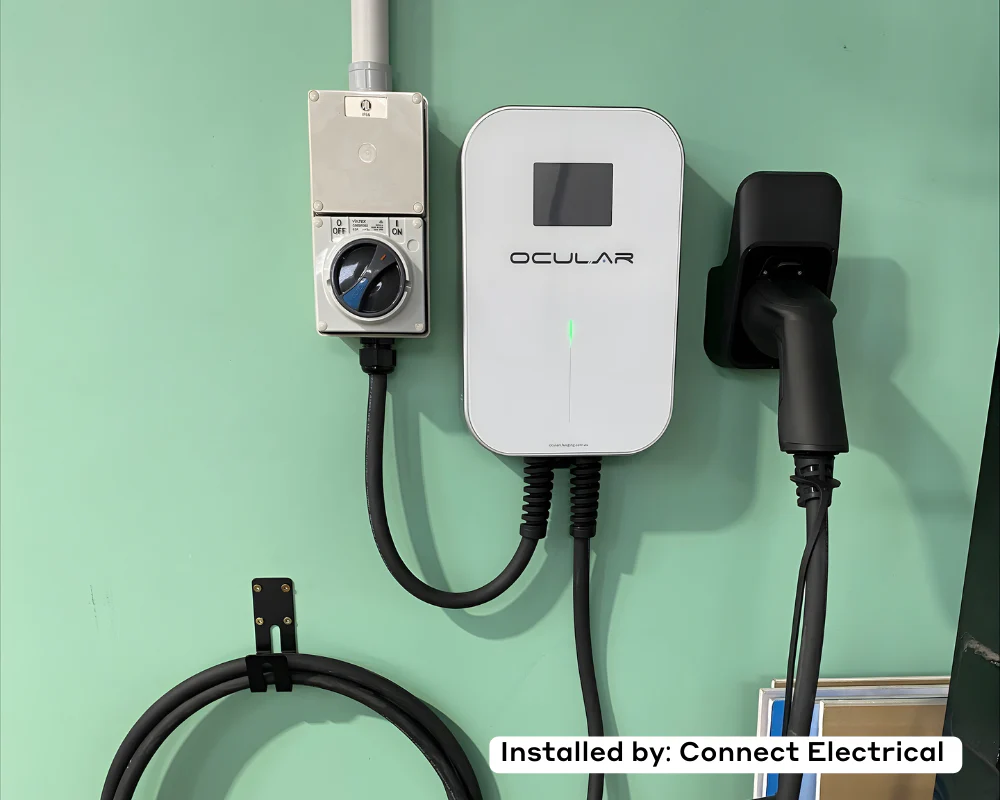

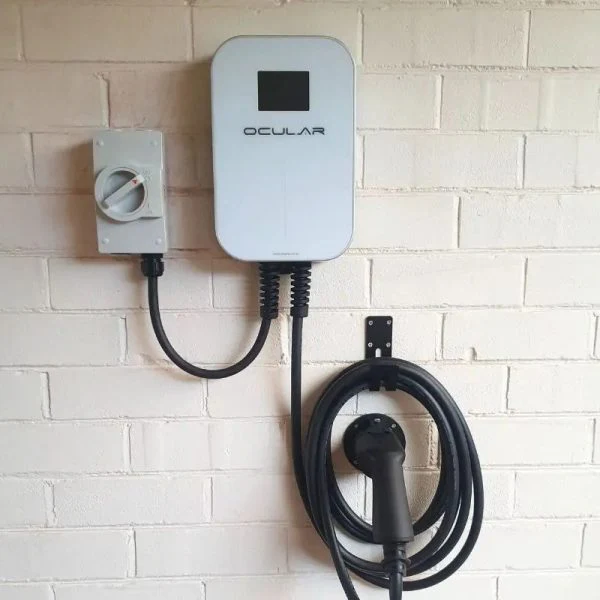

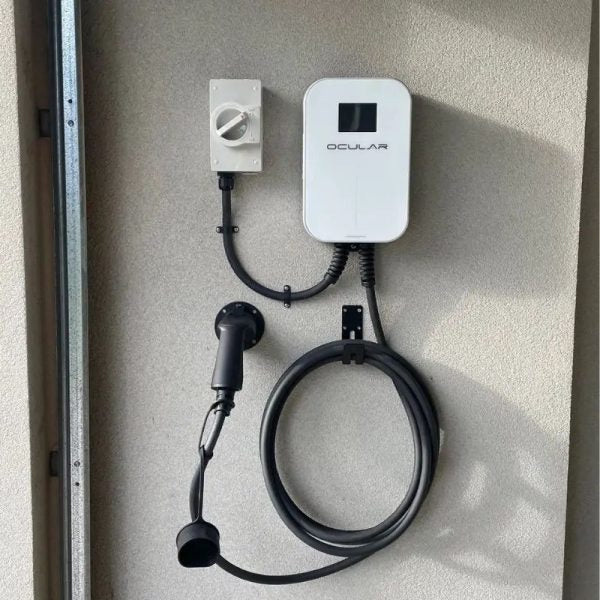

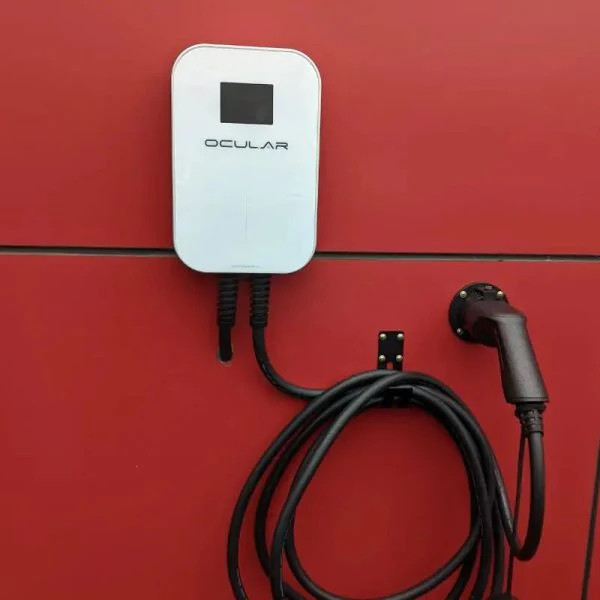

Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing has a robust IK10 rating with a waterproof IP55 rating. It can be easily installed on the wall, with stand mounting available as well.
Save Money by creating your Charging Schedule
With our charger’s custom charging schedule feature, you can tap into cheaper off-peak energy or align your charging sessions with your solar generation. This means you’ll not only enjoy a greener lifestyle but also keep more money in your pocket. Please note the schedule requires you to plug in and out daily.
Technical Specifications:
| Power Output | : | 7.2kW (1- Phase) |
| Charging Connector | : | Tethered 6m Type-2 Cable |
| Display | : | 3.5" LCD Screen + LED indication lights |
| Frequency (Hz) | : | 50Hz |
| Input and Output Voltage | : | 230V ± 20% per phase |
| Input and Output Current | : | 32A MAX per phase |
| Operating Temperature | : | -30℃ to +55℃ in operation |
| Storage Temperature | : | -40℃ to +75℃ in storage |
| Working Humidity | : | 95% relative humidity, non-condensing |

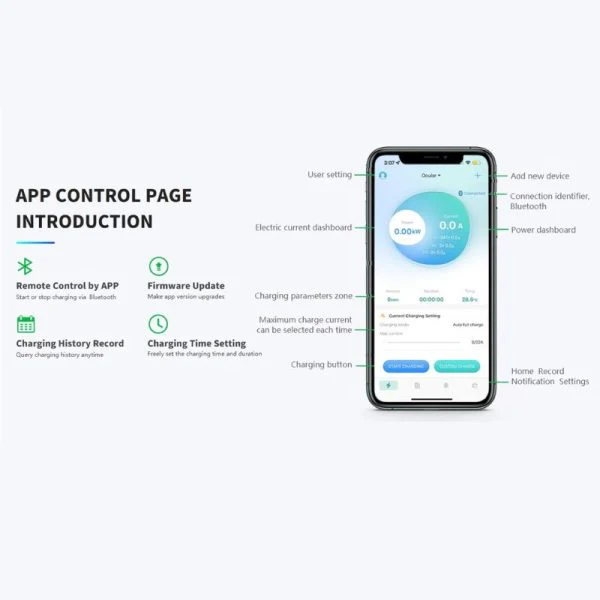

| Control Methods | : | Mobile app (bluetooth), physical button, start on plug OCPP (1.6J via ethernet only, additional configuration required) |
| OCPP Compatibility | : | OCPP 1.6J |
| Internet Connection | : | Ethernet (only used for OCPP) |
| IP Performance | : | IP55 |
| Internal RCD | : | 30mA AC + 6mA DC |
| Electrical Protection | : | Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature, Earth leakage |
| Meter | : | Integrated Energy Meter |
| Standby Power Consumption | : | <15W |
| Mounting | : | Wall mountable |
| Dimension (H x W x D, mm) | : | 318 x 200 x 80 mm |
| Net Weight | : | 6.5 kg |
| Recommended Cable Breaker | : | 40A single phase type A RCBO |
| Recommended Cable Size (50m run) | : | 10mm2 2C+E |
| Certification | : | CE, TUV, FCC, CSA, RoHS, RCM |
| Warranty | : | 3 years |
Important Product Information
Access the PDF guide for complete installation and product information.
User Manual & Installation Guide Datasheet
